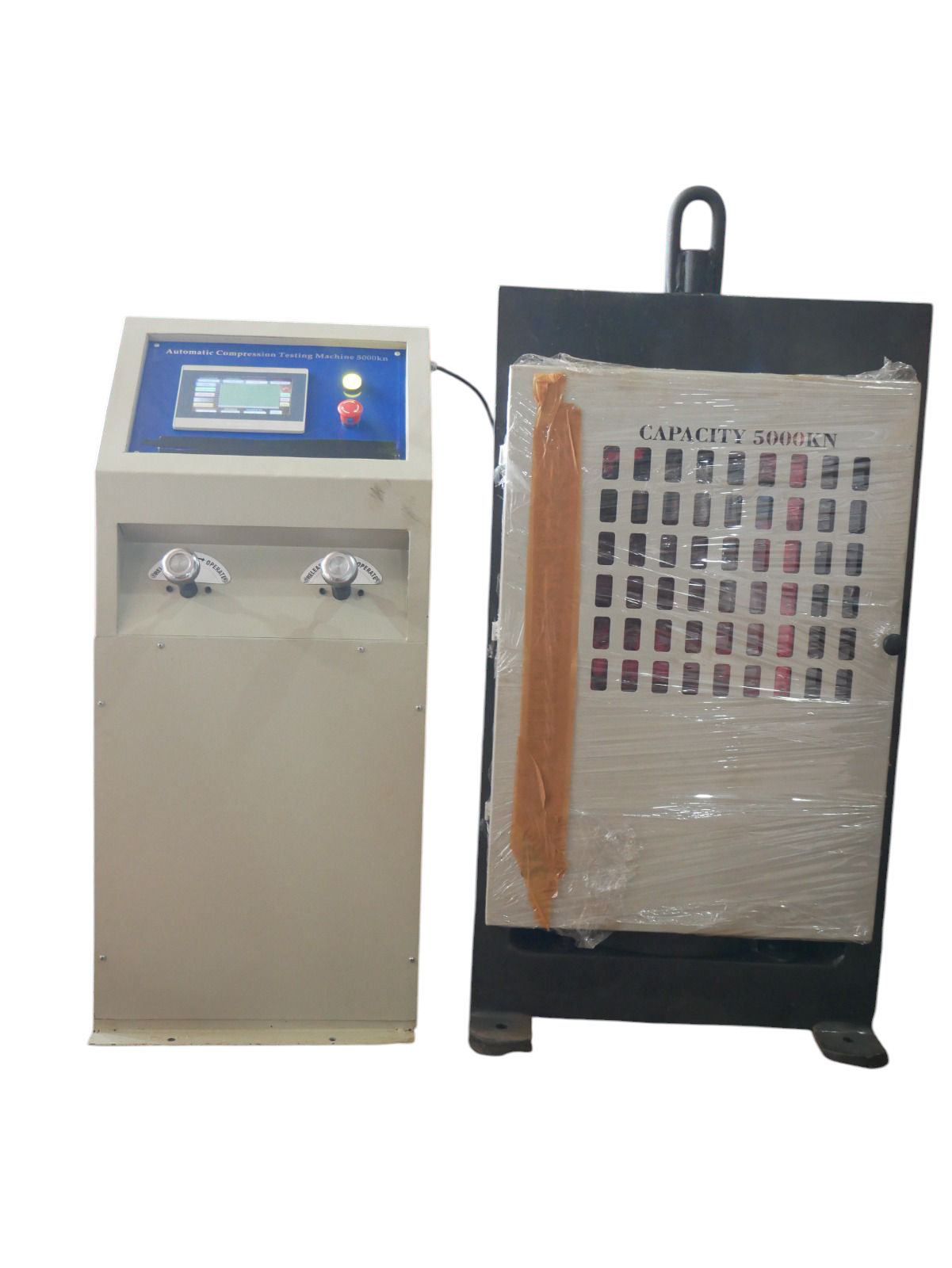

Automatic Compression Testing Machine 5000 kN
Model No.: SET-1148
Standards:
Civil Lab Equipment Automatic Compression Testing Machine 5000 KN, a high-performance tool designed for accurate and efficient compression testing in civil engineering applications. This advanced machine is capable of exerting a force of up to 5000 kilonewtons, ensuring precise and reliable results for measuring the compressive strength of various construction materials. With its automatic capabilities, this compression testing machine streamlines the testing process, saving time and effort in the laboratory. Trust in the Automatic Compression Testing Machine 5000 KN to deliver consistent and trustworthy results for your civil engineering projects.
An Automatic Compression Testing Machine 5000 KN is a state-of-the-art testing equipment used to determine the compressive strength of concrete specimens. With a capacity of up to 5000 kilonewtons, this machine is able to accurately test the strength of various types of concrete mixes under different curing conditions.
Specification for Automatic Compression Testing Machine 5000 KN:- Maximum testing force: 5000 KN
- Pace rate control 1 to 10kn/s
- Load measurement range: 1-100% full scale
- Load measurement accuracy: ±1% of the indicated load
- Display: Screen Touch 7 inch display.
- Control system: Fully automatic with microprocessor control
- Safety features: Overload protection, emergency stop button, protective housing
- Specimen size: Up to 300 mm cube
- Power supply: 440V/50Hz
- Dimensions: 1200 x 500 x 1200 mm (L x W x H)
- Weight: Approximately 2500 kg
- Compliance: Conforms to international testing standards
| Model | Unit | SET-1139-A | SET-1139-B |
|---|---|---|---|
| Capacity | kN | 3000 | 5000 |
| Standard | IS14858:2000 | IS14858:2000 | |
| Ram dia meter | mm | 250 | 350mm |
| Least Count | kN | 0.1 | 0.1 |
| Ram Travel | mm | 50 | 60 |
| Lower platens dimensions | Mm | Ø280 | 355 |
| Upper platens dimensions | Mm | Ø280 | 355 |
| Maximum vertical | mm | 320 | 350 |
| clearance between platens | Mm | 320 | 350 |
| Horizontal clearance | mm | 380 | 470 |
| Height of Load Frame | Mm | 1200 | 1200 |
| Weight of Load Frame | Kg | 950 | 2500 |
| Specimen Size (Suitable with load frame) | |||
| Cube Mould | mm | 70.6, 100, 150, 200 | 70.6, 100, 150, 200 |
| Cube Mould | mm | 100, 150, 200, 300 | 100, 150, 200, 300 |
Why is the Automatic Compression Testing Machine 5000 KN Essential for Civil Engineers?
The Automatic Compression Testing Machine 5000 KN plays a critical role in quality control and compliance with industry standards in the construction sector. Civil engineers rely on the accurate test results provided by this machine to assess the strength of concrete mixes, identify potential weaknesses, and make informed decisions about the design and construction of buildings and infrastructure projects.
| Capacity | 5000 kn |
|---|---|
| Weight approx in kg | 2050 Kg |
| Platen hardness | More than 550 Vickers hardness |
| Electric Motor | 1 HP, Three Phase |
Benefits of Using an Automatic Compression Testing Machine 5000 KN:
- Accurate Results: The machine provides precise and reliable test results, helping engineers ensure the quality and durability of concrete structures.
- Time Efficiency: Automated operation saves time and allows for quick testing of multiple specimens, improving workflow efficiency.
- Cost-Effective: By detecting issues early on, the machine helps prevent costly repairs and rework, saving money in the long run.
- Documentation: Test data generated by the machine can be easily stored and accessed for future reference, facilitating compliance with regulations and standards.
