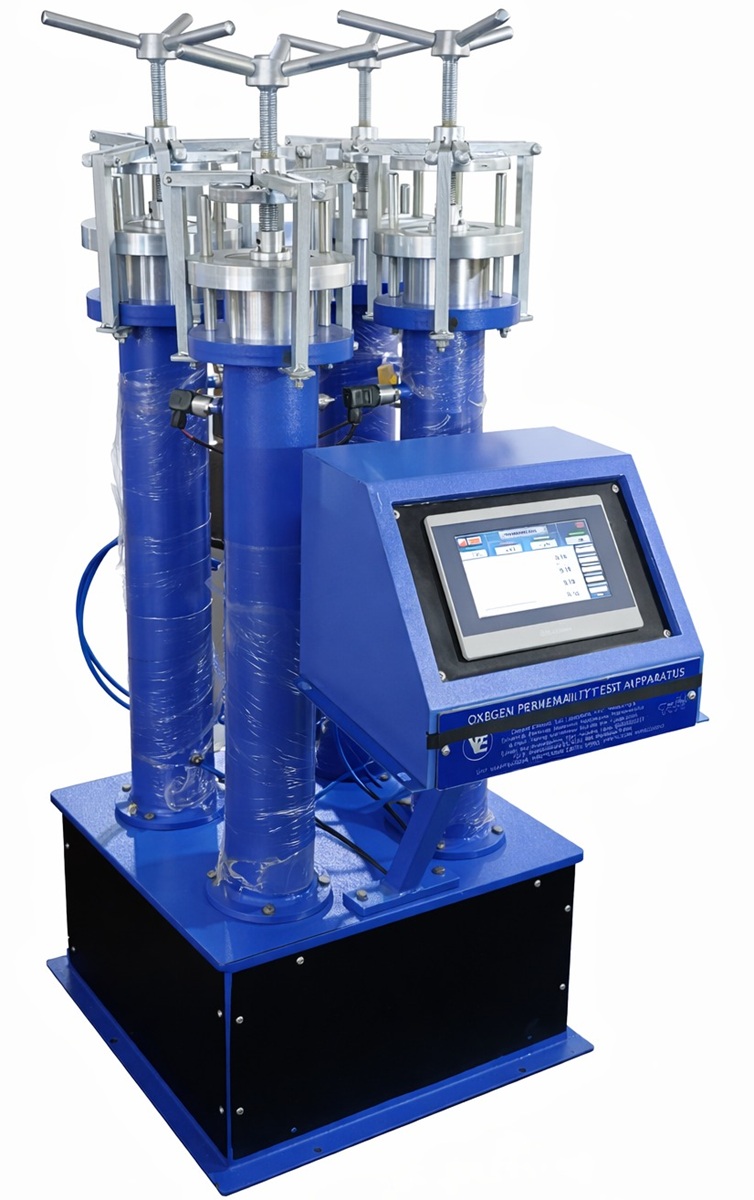

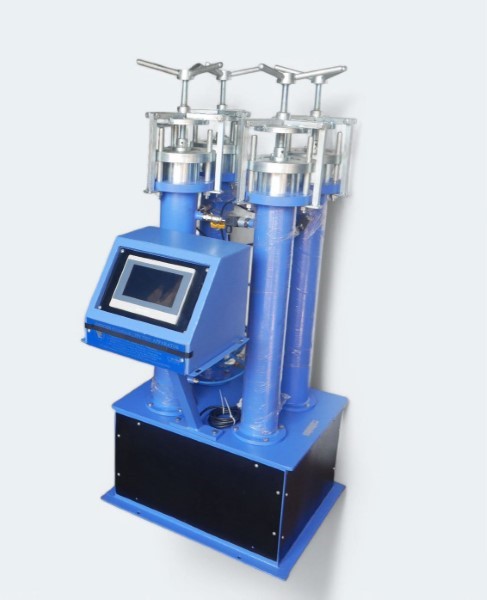

Oxygen Permeability Test Apparatus
Model No.: SET-1147
Standards:
Since cement paste is a porous material, liquids can penetrate into cement based materials. If the pores are at least partially emptied, gases can also diffuse into such materials. With the described test, the resistance of cement based materials against ingress of oxygen under pressure is determined. Oxygen is used as the penetrating gas since it does not react with the cement paste and therefore the hydrates and the pore system are not altered.
In contrast to the oxygen diffusion test there is a pressure difference between the both sides of the
| Sample Test Area | 70x30mm |
|---|---|
| Temperature Control Range:- | 27°C with accuracy ± 0.1°C |
| Humidity Control:- | 15 – 90% RH with accuracy ± 1% |
| Pressurizing Gas:- | Clean, dry, compressed air Any other nonflammable, noncorrosive gas |
| Pressure Transducer Range:- | 2bar |
| Nos. of pressure transducer | 4 nos |
| Reservoir Volume | 5 liters |
| Pressure Controller | 1.47 ± 0.02 kPa |
| Accuracy | 0.15% of reading |
| Display unit | Touch Screen 7inch |
| Graph | Real time graph for 4 specimen |
| Power Requirements | 220-230V, 50Hz |
Key Features
- Fully automatic
- User- friendly, Windows-based software handles all control, measurement, data collection, and report generation; complete manual control also possible
- Comes with computer equipped with real-time graphical test display which depicts testing status and results throughout operation
- Ability to test more than one sample at a time
- Provides fast and accurate results
- Non-destructive testing
- Able to maintain and control temperature and humidity
- Wide range of acceptable sample types and sizes
- Minimal maintenance required
- Units in Gurley, Darcy, Frazier, and many others
- Completely automated air permeability and surface tester
- Pneumatic Clamping
Our Oxygen Permeability Test Apparatus is a sophisticated tool designed to accurately measure the oxygen transmission rate through various materials such as plastic film, sheeting, metals, laminated film, and packages. As leading Oxygen Permeability Test Apparatus Manufacturers and Suppliers in India, we provide high-quality equipment for testing the barrier properties of different materials.
Our Oxygen Permeability Tester is suitable for industries seeking to ensure the quality and effectiveness of their packaging solutions. With our expertise and precision instruments, we help businesses optimize their packaging designs for better shelf life and product preservation. Contact us for reliable Oxygen Permeability Test Apparatus Exporters in India.
