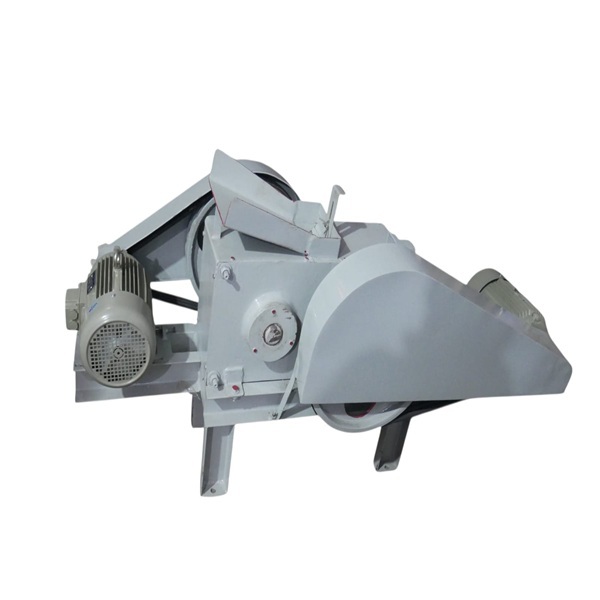

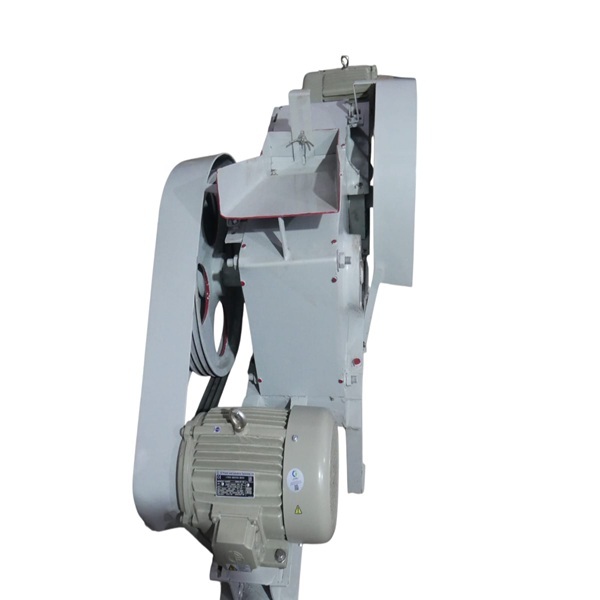

Roll Crusher Double Shaft
Model No.: SET-1428
Standards:
We have emerged as one of the leading organizations engaged in offering an exclusive range of Roll Crusher in market. Our skilled artisans design offered assortment in harmony with global norms and standards. These products are quality tested by professionals in line with worldwide norms and standards. Moreover, these products are highly known for their long-lasting nature.
Features:
- Consistent working
- Longer functioning life
- Precise designs
Technical Details:
| Size of Roller | :12" X 8"( 300 mm Dia X 200 mm Long) |
|---|---|
| Model | : SRC 128/LAB |
| Type | : Ready To Use |
| No. of Rollers | : 02 Nos. smooth Roller |
| MOC of Roller | : Mn. Steel , Grade III, as per IS 276 specifications. |
| MOC of Body | : 10/ 12 mm thick MS fabricated electrically welded with sufficient Ribs and gasket etc. and binding with M.S Flat. |
| Materials to be crushed | : Mn. Ore/ Iron Ore. |
| Feed Size of materials | : 10-13 mm |
| Finish size | 0.5 mm to 3 mm |
| Output Size | : 1-2 mm. |
| Capacity | : 100-200 Kg/ Hr |
| Motor | : 02 Nos , 3 HP 960 RPM, AC 3 Phase, TEFC , IE2 Series CGL/ABB/BBL make Motors. |
| Drive Arrangement | : Individual Roller to be driven by Individual Motor through V. Pulley, V Belts arrangement. |
| Speed | : 140-160 RPM. |
| Machine Installation Space | :2000 mm Long X 1500 mm Width X 1300 mm Height (Approx) ( including Motor Base Frame) |
Scope Of Supply:
Crusher to be supplied in assembled condition fitted with Body, Rollers, Integrated Base Frame, Motors, V Belt , Roller Guards, Motor Guards and all necessary accessories etc. duly painted condition. But without Starter, Foundation Bolt , Electrical Cable and any extra Spares etc.
