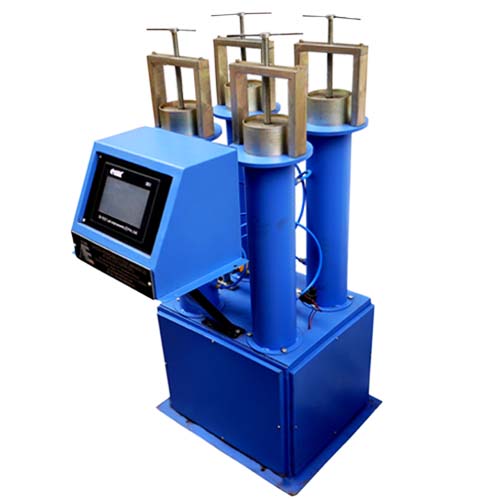

Oxygen Permeability Test Apparatus
Model No.: SET-1148
Standards: IS2645:2003
Looking for Oxygen Permeability Test Apparatus manufacturers, suppliers, or exporters in India? Whether you need state-of-the-art testing equipment or cost-effective solutions, you can find the right partner for your needs here. Get in touch with trusted manufacturers to ensure accurate testing and reliable results for your oxygen permeability testing requirements. Trust our list of reputable suppliers and exporters to provide you with high-quality Oxygen Permeability Test Apparatus in India.
Oxygen Permeability Test Apparatus Technical Specification
| Air Permeance Range | 0 – 600 cm3/m2/day |
| Resolution | 0.01 cm3/m2/day |
| Variable Sample Test Area | 2 – 65 cm2 (adjustable) |
| Sample Size | 100mm x 100mm |
| Sample Thickness | 10µ – 10mm |
| Pneumatic Clamping | (180±30)N |
| Pressure Range | Up to (127 ± 0.02)kPa |
| Temperature Control Range | 15°C – 55°C with accuracy ± 0.1°C |
| Pressurizing Gas | Clean, dry, compressed air Any other nonflammable, noncorrosive gas |
| Pressure Transducer Range | 0 – 150 kPa |
| Reservoir Volume | 10 liters |
| Pressure Controller | 1.47 ± 0.02 kPa |
| Repeatability | ± 1% |
| Mass Flow Transducer Range | 5-150 ± 2 ml/min, 50-500 ± 5 ml/min, 300-3000 ± 20 ml/min |
| Power Requirements | 220-230V, 50Hz |
Oxygen Permeability Tester Apparatus Features
- Fully automatic
- User- friendly, Windows-based software handles all control, measurement, data collection, and report generation; complete manual control also possible
- Comes with computer equipped with real-time graphical test display which depicts testing status and results throughout operation
- Ability to test more than one sample at a time
- Provides fast and accurate results
- Non-destructive testing
- Able to maintain and control temperature and humidity
- Wide range of acceptable sample types and sizes
- Minimal maintenance required
- Units in Gurley, Darcy, Frazier, and many others
- Completely automated air permeability and surface tester
- Pneumatic Clamping
- Permeability measurement of high flow rate samples like cartridges
- Permeability of samples under compressive stress
- Use of elevated test temperatures and a wide variety of gases
Our Oxygen Permeability Test Apparatus is a sophisticated tool designed to accurately measure the oxygen transmission rate through various materials such as plastic film, sheeting, metals, laminated film, and packages. As leading Oxygen Permeability Test Apparatus Manufacturers and Suppliers in India, we provide high-quality equipment for testing the barrier properties of different materials.
Our Oxygen Permeability Tester is suitable for industries seeking to ensure the quality and effectiveness of their packaging solutions. With our expertise and precision instruments, we help businesses optimize their packaging designs for better shelf life and product preservation. Contact us for reliable Oxygen Permeability Test Apparatus Exporters in India.
