Concrete Penetrometer Spring Type

Model No.: SET-1111

Standards:
ASTM C-403

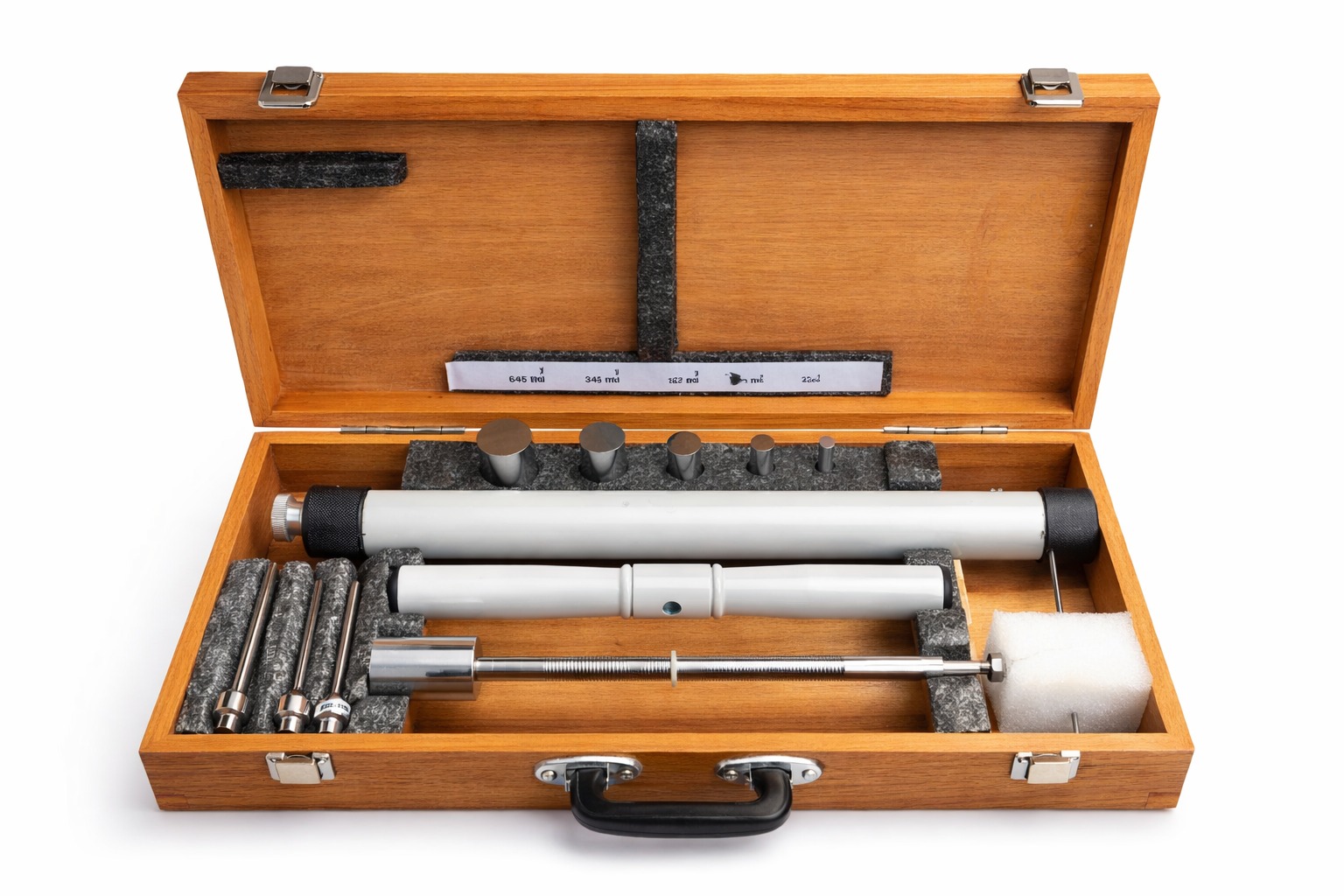

The Mortar Penetrometer known as Spring Pentrrometer is used for the purpose of ascertaining the rate of mortar component’s hardening of the freshly mixed concrete. This process is done by the means of penetration needles of diverse areas of cross section. Being a top-notch manufacturer of Mortar Penetrometer, we supply the instrument as per the industry requirements and best standards.

The instrument comprises of a barrel housing along with a calibrated spring and a stem that ranges between 0-70 kg x 1 kg. The instrument also comes with needles of areas 16, 32, 65, 323, and 645 are made available. The penetration resistance is measured by the force which isapplied to perforate the mortar by 25mm and is specified by a sliding ring on the stem, which is categorized. Needle shanks identified at every 12.5mm and comes in a wooden carrying case.

  • Six Stainless Steel Penetration Needles
  • Manual Mortar Penetrometer
  • Carrying case
