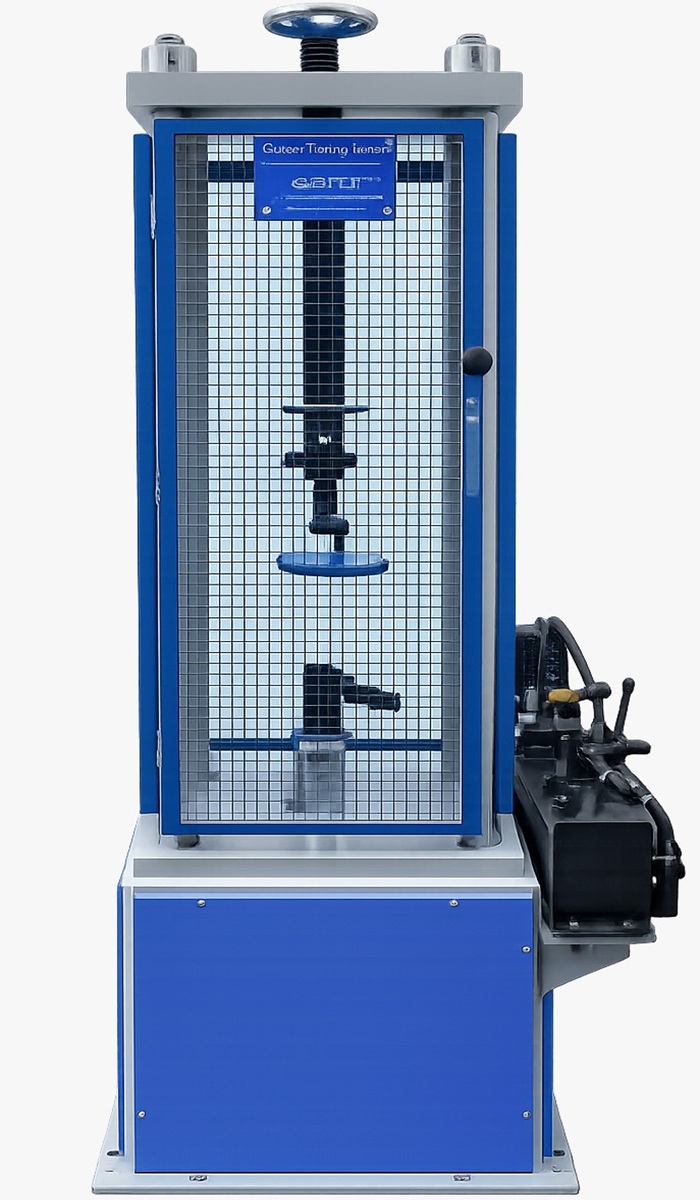

Insulator Testing Machine

Model No.: SET-1145

SE-Test India Insulator Testing Machine is used for testing of railway (traction) insulators, porcelain as well as polymer. Insulator Testing Machine are used for raliway electrification and is widely being used by several EPC contractors for the Dedicated Freight Corridor (DFC) Project.

SE-Test Lab Instruments (I) Pvt. Ltd is a leading manufacturers, suppliers, and exporters insulator testing machine in Delhi, India. We are ready to design and develop a testing machine for the With the utilization of the latest engineering technology and compact hydraulic power pack which ensures faster and easier testing of insulators. We are manufacturing equipment with load testing capacities from 9 tons – 20 tons.

Insulator Testing Machine Application:

Insulator testing machine can be used in rubber, plastics, wires and cables, textiles, waterproof materials, metal foils, metal plates, metal bars, non-woven fabrics and other non-metallic materials, as well as mechanical properties testing of metal wires. Civil Lab provide a variety of finished product stretching, shearing, tearing, compression, peeling, bending (folding) test together with various fixtures and print graphical output high control comparison and easy operation and all kinds of accessories are complete and flexible.

Load Frame Specification:

Technical Weight
Capacity SWL 10 TON
Capacity SOL 12.5 TON
Recording Gauge SS Burdon
Dial Size 150mm
Least Count 100 kg
Accuracy ±1% FSD

Physical:

Physical Weight
Height 1673 mm
Width 673 mm
Base Dimension 715 mm
Table Height 560 mm
Gap Between Coolum 375 mm
Weight 150kg Aprox

Hydraulic Pump Unit:

  • It’s a Single piston double acting pump.
  • Max Pressure Rage 700 bar (10,000 PSI)



SE-Test India Pvt. Ltd. offers complete range of Insulator Testing Machine in civil engineering and construction sector. We are developed to assist the IDE Insulator Testing Machine engineers and technicians in the detailed analysis of soil samples and derive accurate predictions there from. We are Insulator Testing Machine manufacturers, suppliers and exporters in Delhi, India.

We are leading insulator testing machine manufacturers, suppliers and exporters in Delhi, India. Under the competent guidance of our proficient professional, we have immersed ourselves as a premium manufacturer and insulator testing machine suppliers and exporters in Delhi, India.
