Concrete Flow Table Test

Model No.: SET-1106

Standards:
EN 12350-5

Civil Lab Equipment Manufacturer Concrete Flow Table Test Set with model is manufacturers as per the industry defined EN 12350-5 standards. Concrete Flow Table Test Sets are the commonly required in the laboratory.

The test set is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table. The apparatus consists of a double heavy mild steel table, an upper table measuring 700 x 700 / 900 x 900 millimetre and hinged at one side to the lower table. The top table is inscribed and all parts are protected against corrosion. The mild steel cone has a 130 ±2 millimetre top diameter, 200 ±2 millimetre base diameter and 200 ±2 mm height and 1.5 mm thickness.
Overall Dimensions: 700 x 850 x 300 mm, Weight (approx.) 40 kg

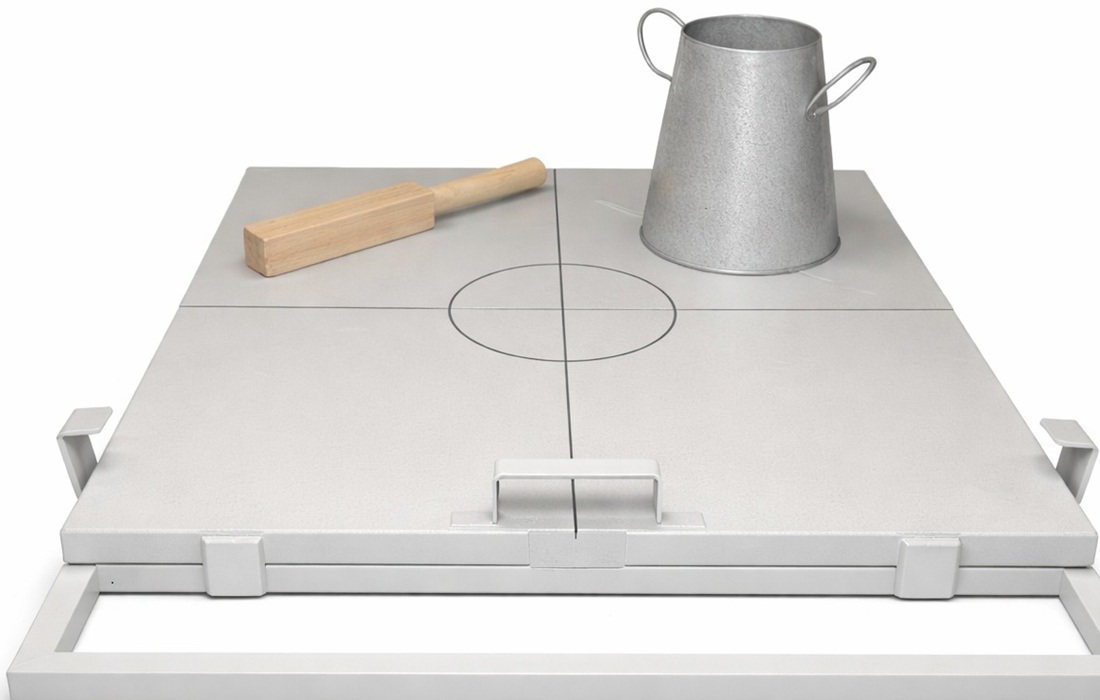

Concrete flow table test set
Flow cone for
Wooden tamper 40 x 40 x 335 mm
