Laboratory Concrete Mixer (Drum Type)

Model No.: SET-1001

Standards:

Civil Lab Equipment Manufacturer Laboratory Concrete Mixer with model is manufacturers as per the industry defined standards. Laboratory Concrete Mixer are the commonly required in the laboratory.

Laboratory Concrete Mixer
Specification:-

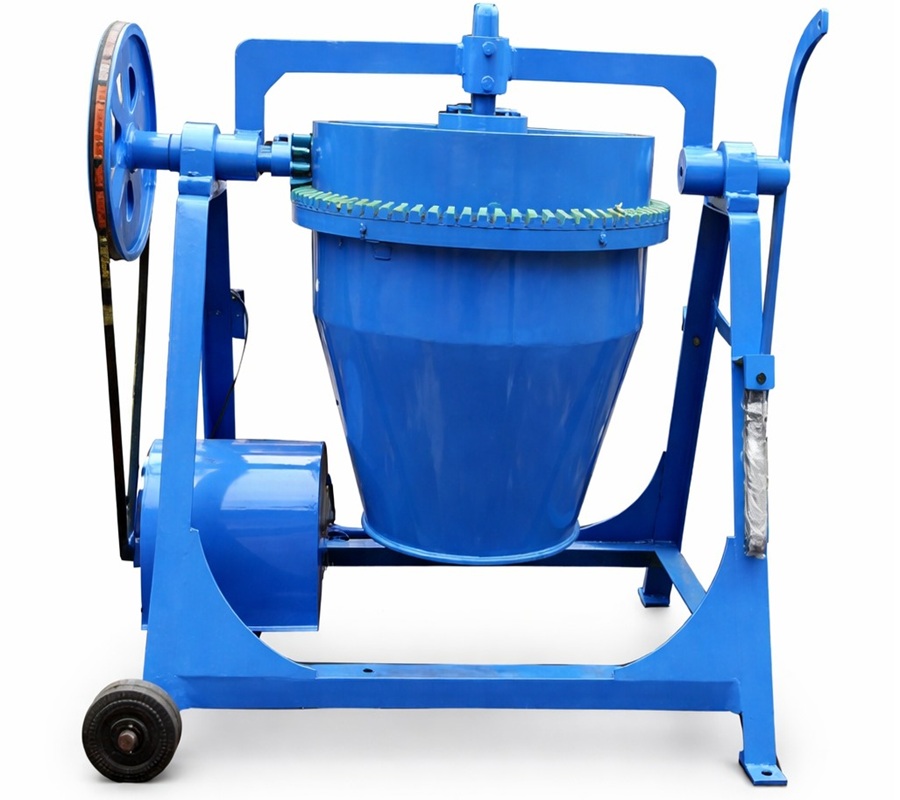

The mixing drum type Laboratory Concrete Mixer is used for preparing Mix Design of Concrete. It is including of a steel mixing drum of 110 Litres capacity which mounted on a frame. The drum rotation is 20-22 RPM with the help of 1hp motor and a pulley arrangement. The mixing drum of laboratory concrete mixer can be titled both front and back side at any angle with help hand wheel and counterweight. Mixing Blades are fitted inside the mixing drum vessel to mix the material thoroughly & constantly.

The mixing drum, pulley wheel, and motor, etc, are mounted on a heavy steel angle frame in these laboratories’ concrete mixer.

Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply

This is a brass tube approximately 53cm long and 2.8cm I.D. with a wooden handle. Total length approximately 73cm. The tube has the sharp angular edge which conveniently pierces cement bags. An air hole of approximately 3mm dia. is drilled on the tube near handle. Total sample collected at one time is 300 cm approximately.

This is a brass tube approximately 53cm long and 2.8cm I.D. with a wooden handle. Total length approximately 73cm. The tube has the sharp angular edge which conveniently pierces cement bags. An air hole of approximately 3mm dia. is drilled on the tube near handle. Total sample collected at one time is 300 cm approximately.
