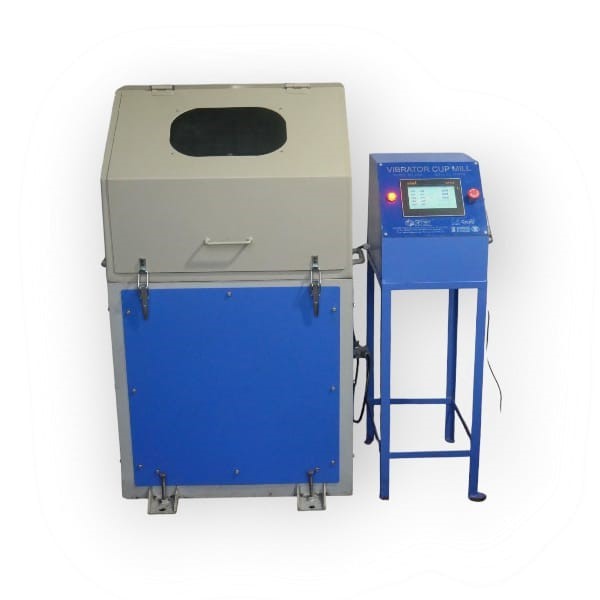

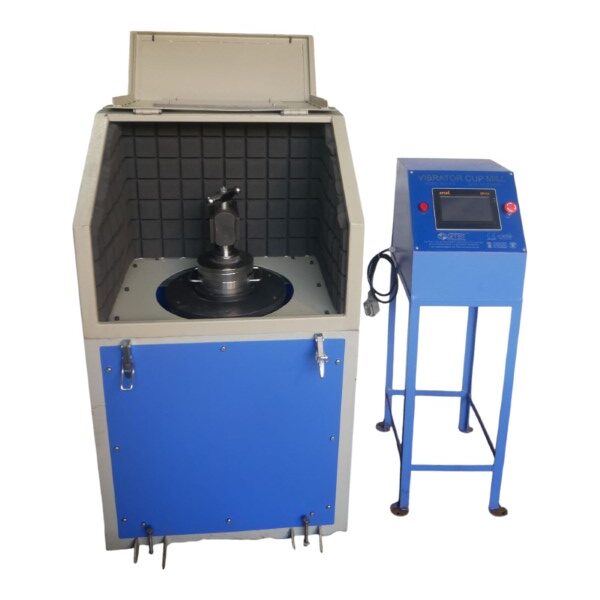

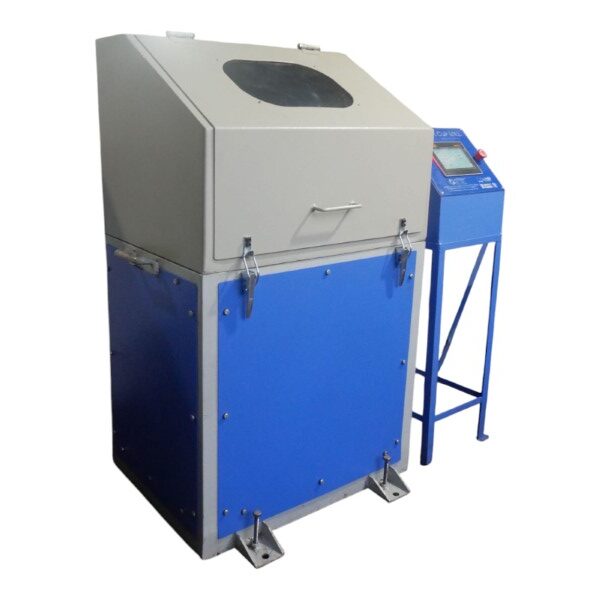

Vibrating Cup Mill

Model No.: SET-1408

IS 2376 (PART-IV) & BS 812:111

We are leading vibrating cup mill manufacturers, suppliers and exporters in Delhi, India. we take pride in delivering high-quality equipment that revolutionizes sample preparation for elemental analysis and phase analysis. Civil Lab Equipment Manufacturer used cutting-edge technology and precision engineering, our Vibratory Cup Mills are the go-to solution for efficient and accurate sample preparation.

Key Features

  • Bowl plate is required and bowl sets of 50ml to 250 ml can be put on a similar bowl plate.
  • Four Bowl Simultaneous Grinding: In case of multiple material grinding requirements, 4 Bowl Vibratory Cup Mills provides the facility of grinding 4 different materials at the same time.
  • 50 ml bowls option is available
  • Fine grinding within minutes.
  • Used high speed grinding of minerals, ores with extremely high repeatability.
  • Detachable grinding bowl set for better cleaning. Superior quality bowls to eliminate cross- contamination during grinding.
  • We used Independent precise time control system to achieve the desired material fineness for different materials.

Vibratory Cup Mills Output

  • Range of size reduction from 8 mm -38 microns is achieved
  • Suit the material fineness setting time possible
  • Easy Replacement for Bowl location plate and Bowl
Purpose Pulverizing for laboratory use
Mounting Type Floor mounting No foundation required
Working Principle Friction
Maximum Feed Size upto 8 mm
Output Size (adjustable) Start Range : ≤ 100 mesh End Range : ≤ 325 mesh Cycle time: 30 sec to 3 mins for 20 to 60 gm sample (150ml bowl set)
Throughput at usual Product size 15-20 samples per hour, per bowl
Pulverizing materials Bauxite, Clinker, Coal, Coke, Concrete, Corundum, Geological ores, Glass, Granite, Graphite, Laterite, Limestone, Iron ore, Quartz, Silicates, Slag Pulverizes materials with medium to substantially high hardness and brittleness.
Motor Drive Motor Power : 1.5 kw 2HP Motor RPM : 1440 Volts: 415 3 Phase induction Motor
Required Power 3 phase neutral earthing through 10 amps 4 Pole MCB
Machine Size (in millimeters) Length: 600 Width: 720 Height : 950
Weight (Kg) Machine: 230 Wooden Box: 80 Total Machine: 310
