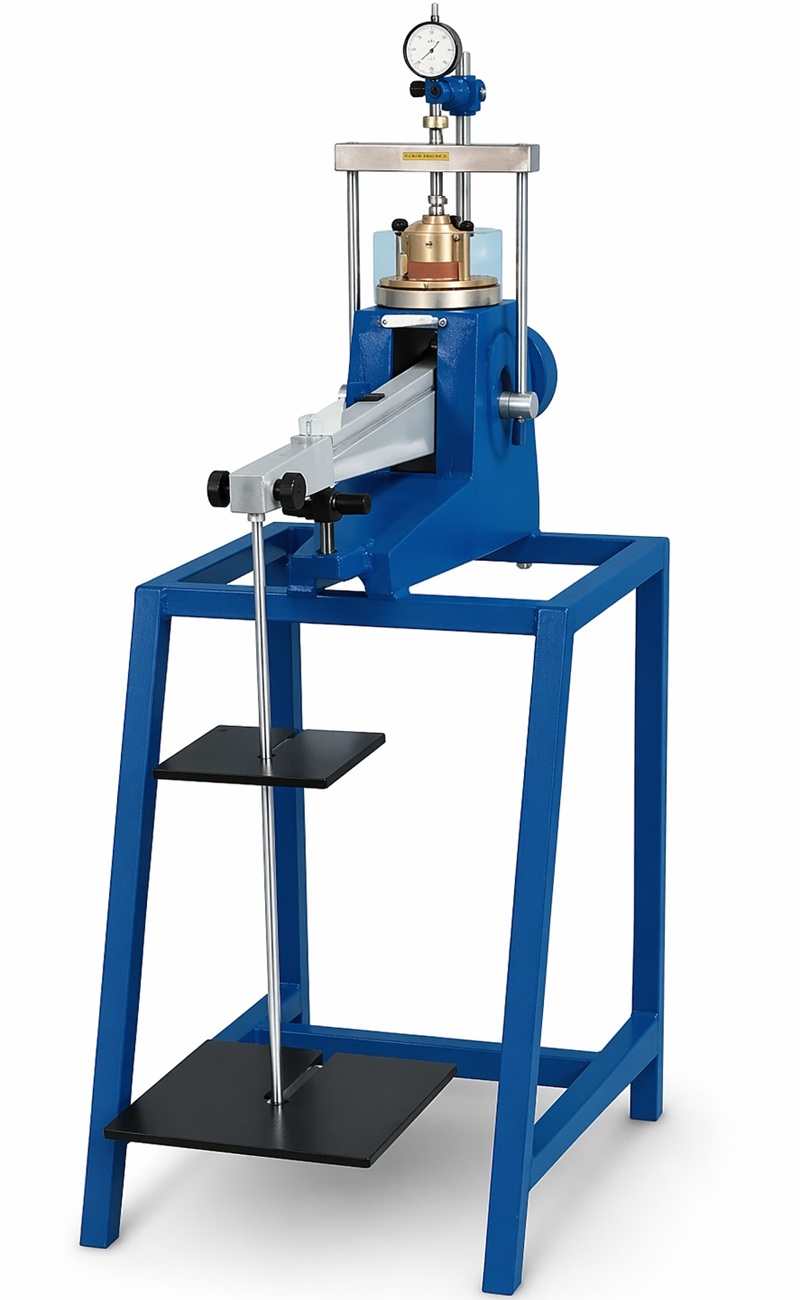

Consolidation Apparatus (Front Loading Type)

Model No.: SET-1233

Standards:

At Civil Lab Equipment Manufacturer, we manufacture, supply and export Consolidation Apparatus Front Loading Type of best quality to our clients across the world. At Civil Lab Equipment Manufacturer, is one of the best soil testing laboratory apparatus which allows the modern dynamic changes measure accurately and observe correctly in the laboratory.

Lab Equipment Manufacturer provides the three loading ratio and the beam assembly is fitted with the adjustable counter balance weight. It is supplied completely with rod holding the weights and the coupling blocks holding the dial. The pedometer accepts the cell up to 100cm2. Consolidation Apparatus cell weights, dial gauge or transducer, holding beach which have to be ordered separately. Weighting 25 kg approx. It has the maximum weight of 170 slotted. Corresponding to 1870 kg of using the beam ratio 11:1.The beam provides three loading ratio: 9:1 10:1 11:1 and the beam assembly is fitted with an adjustable counterbalance weight.

Maximum Load : Maximum lode up to 150 kg and diameter accepts cells up to 100 cm.
