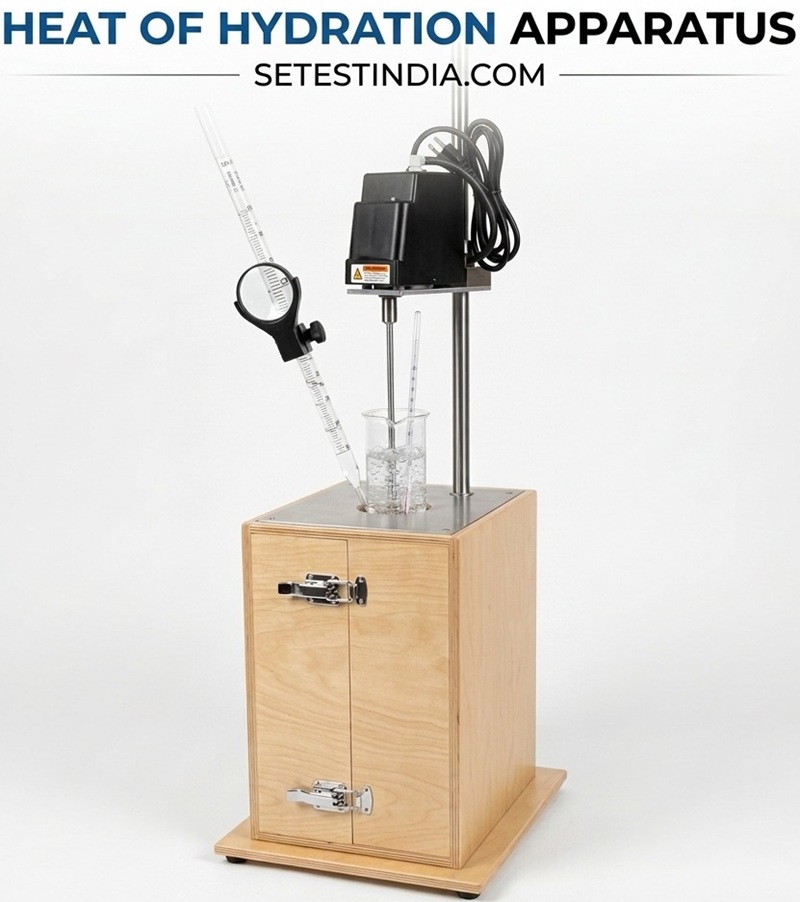

Heat Of Hydration Apparatus

Model No.: SET-1001

Standards:
IS 11262-1985 ASTM C 186

Civil Lab Equipment Manufacturer Heat Of Hydration Apparatus with model is manufacturers as per the industry defined ASTM C204, BS 4359-2 standards. Heat Of Hydration Apparatus are the commonly required in the laboratory.

This equipment is required to determine the heat of hydration of cement as expressed in calories per gram.

The equipment comprises of the following:

  • A wide mounted double walled vacuum flask with a stop cock 38 mm and a insulating container for the flask
  • A Beckman thermometer (Range 5° C) held tightly by the cock stopper in such a way as to avoid accidental contact with the stirrer blade and the reading lens. To facilitate the easy removal the cock stopper is in two halves.
  • A constant speed stirrer (double bladed propeller type)extended to within 38 mm from the bottom of the flask.
  • A funnel (Gooch type) with a stem of 6 mm inner dia and a body approx 25 mm long and 25 mm dia. is fitted to the cock stopper for introducing the sample.
