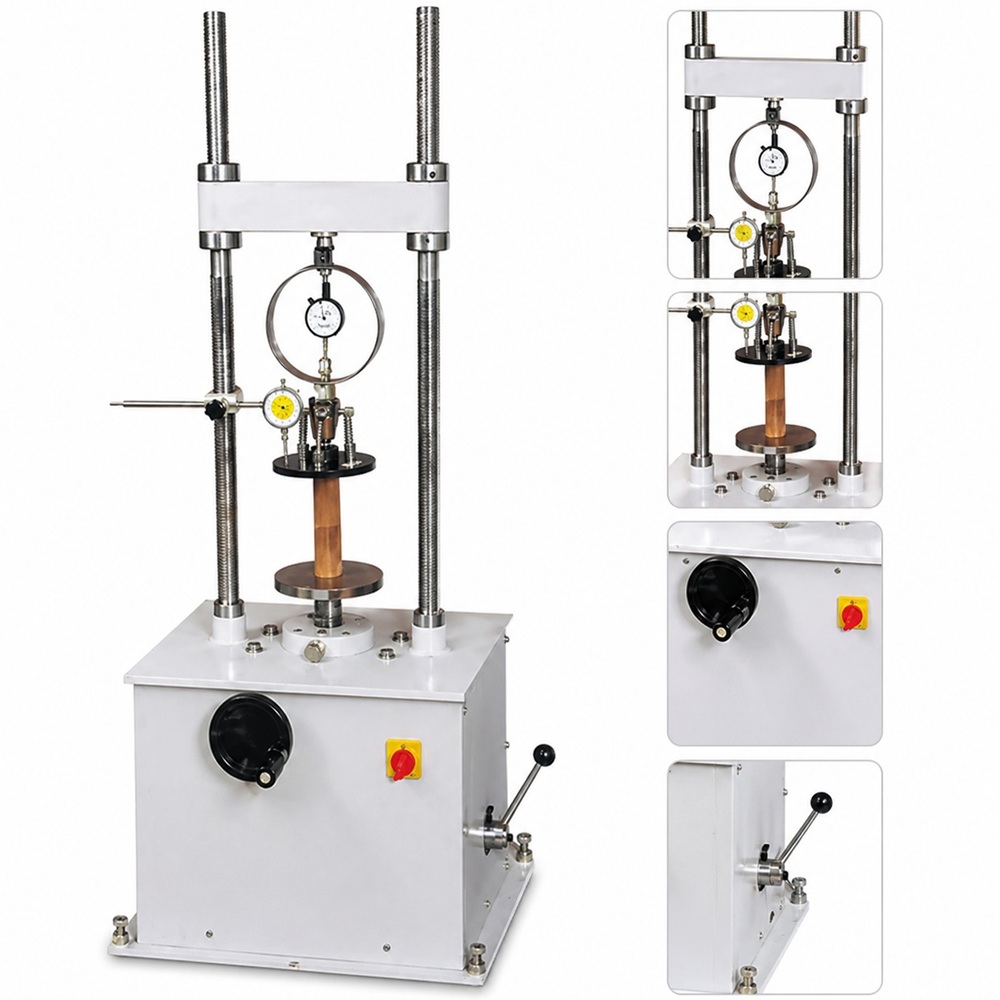

Unconfined Compression Tester (Motorised)

Model No.: SET-1235

Standards:
IS 2720 (PART X) ASTM T 208

Civil Lab Equipment Manufacturer’s Unconfined Compression Tester (Motorized) is manufactured as per the best quality standards. The tester is used for determining the unconfined compression strength of the soil specimens having the diameter in the range of over 38 mm to 100 mm. The load is applied on the sample slowly with the help of motorized load frame capacity 5000 kg with a gear box and then the load is weighed on a sensitive proving ring which comes attached with the particular load frame.

This motorized tester helps in meeting the testing needs quite efficiently. Moreover, the equipment is known for being highly reliable and economical at the same time. SE-It mainly comprises of a screw operated load frame, a gear box along with a motor drive which enables it to give strain of 1.25, 1.5, 2.5mm/min.

The Unconfined Compression Tester also houses stain dial gauge bracket., cone seating along with the adaptor for proving ring. We also supply the equipment with one pair of male/female coning tools of the dia samples which comes without ring and the dial gauge.

The Unconfined Compression Tester (Motorized) is made available along with the following accessories.

  • A pair of cone seating.
  • A stain dial gauge bracket.
  • Easily operated with 230V.
  • An adapter for proving ring.
  • A.C. Supply is single phase.
  • Two Set of Specimen Mould
