Permeability Apparatus (Three Cell Model)
Model No.: SET-1001
Civil Lab Equipment Manufacturer is a renowned organization which takes expertise in manufacturing and supplying of best quality three cell model permeability apparatus.
The concrete permeability apparatus comes equipped with a mild steel cell which is round/square and cross-section. It is mounted properly on a stand and is connected with a pressure chamber to the cell via T-connector and copper tubing.
Both are mounted upon the stand with a valve along with rubber hose pipe having connections at the end. The cell assembly comprises of single base plate, connected through the nozzles. Moreover, the pressure chamber is equipped with a regulator for controlling the pressure of air in it.
The apparatus is supplied with a measuring cylinder 500cc to measure percolated quantity to water.
The gauge is for the purpose of showing the pressure in the cell. Along with it, a pressure tube and foot pump are made available for developing the pressure in the chamber. A measuring cylinder 500cc is also supplied with the apparatus for measuring the required quality to the water.
Pressure can also be applied; by a pressure air line or by a compressor (2 HP capacity), can be supplied at an extra cost. Model available for 6, 9, 12, 18 cells permeability also.

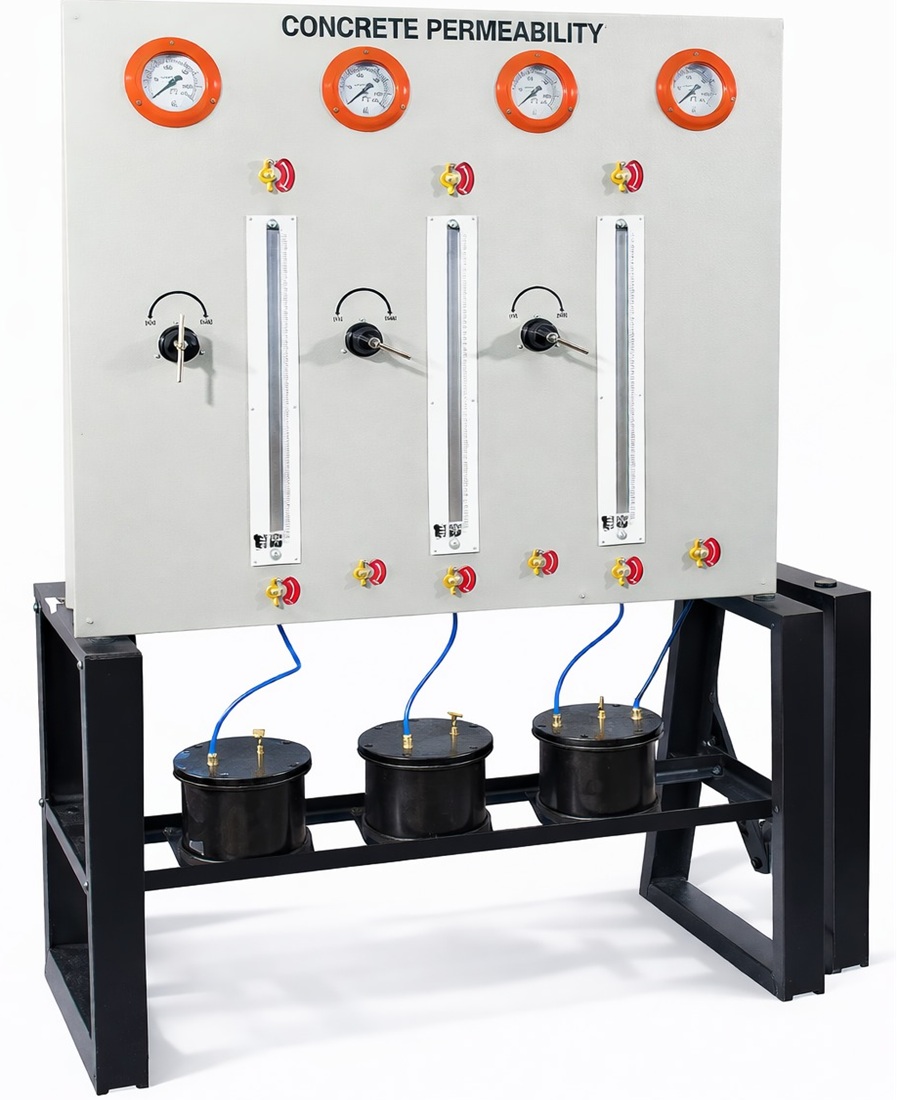

The Permeability Apparatus (Three Cell Model) for testing of the concrete is made available with three separate cells along with the stand. Also, three pressure gauges for reflecting the pressure within each cell have been provided in addition to the principal pressure gauge which showcases the pressure of the chamber.
