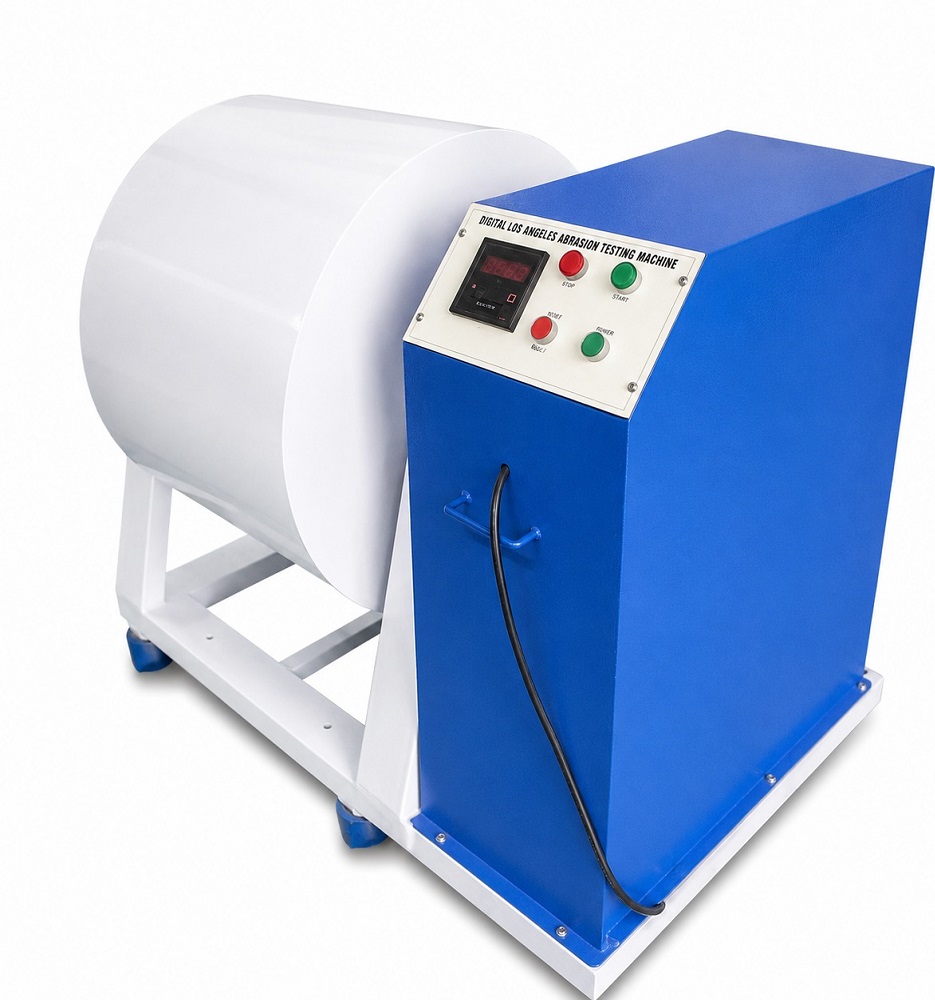

Digital Los Angeles Abrasion Testing Machine

Model No.: SET-1411

Standards:
EN 1097-2, 12697-17, 13450; ASTM C-131, C-535;AASHTO T 96

At Civil Lab Equipment Manufacturer, we manufacture, supply and export Digital Los Angles Abrasion Testing Machine of best quality to our clients across the world. At Civil Lab Equipment Manufacturer, Digital Los Angles Abrasion Testing Machine machine consists of an electronic control unit and a rolled steel drum having an inside diameter of 711 mm and internal length of 508 mm. The drum is rotated an electric motor through a heavy at a speed of 31-33 r.p.m and internal shelf provided with the machine confirms to EN 1097-2, NF P18-573, ASTM C131 standards. Digital los angles abrasion testing machineis equipped with an automatic counter, when the preset revolution count is reached, the machine will stop automatically. Digital los angles abrasion testing machine drum is equipped with an interlock device which allows the operator to lock the drum into position.

Digital Los Angles Abrasion Testing Machine Specification

  • Capacity of 5,000 g each of aggregate and charge.
  • Drum Speed 30-33 rpm.
  • Welded structural steel frame
  • Adjustable; automatic shut-off; push-button reset and adjustment counter
  • Magnetic motor starter with overload protection and integral On-Off switches.
  • Dimensions of 980 x 920 x 980 mm (38.6″ w. x 36.2″ d. x 38.6″ h).
  • Net weight 882 lbs. (400 kg).
  • Power: 220-240vAC, 60 Hz& 440volt, 3 phase, 50 cycle ac supply.
