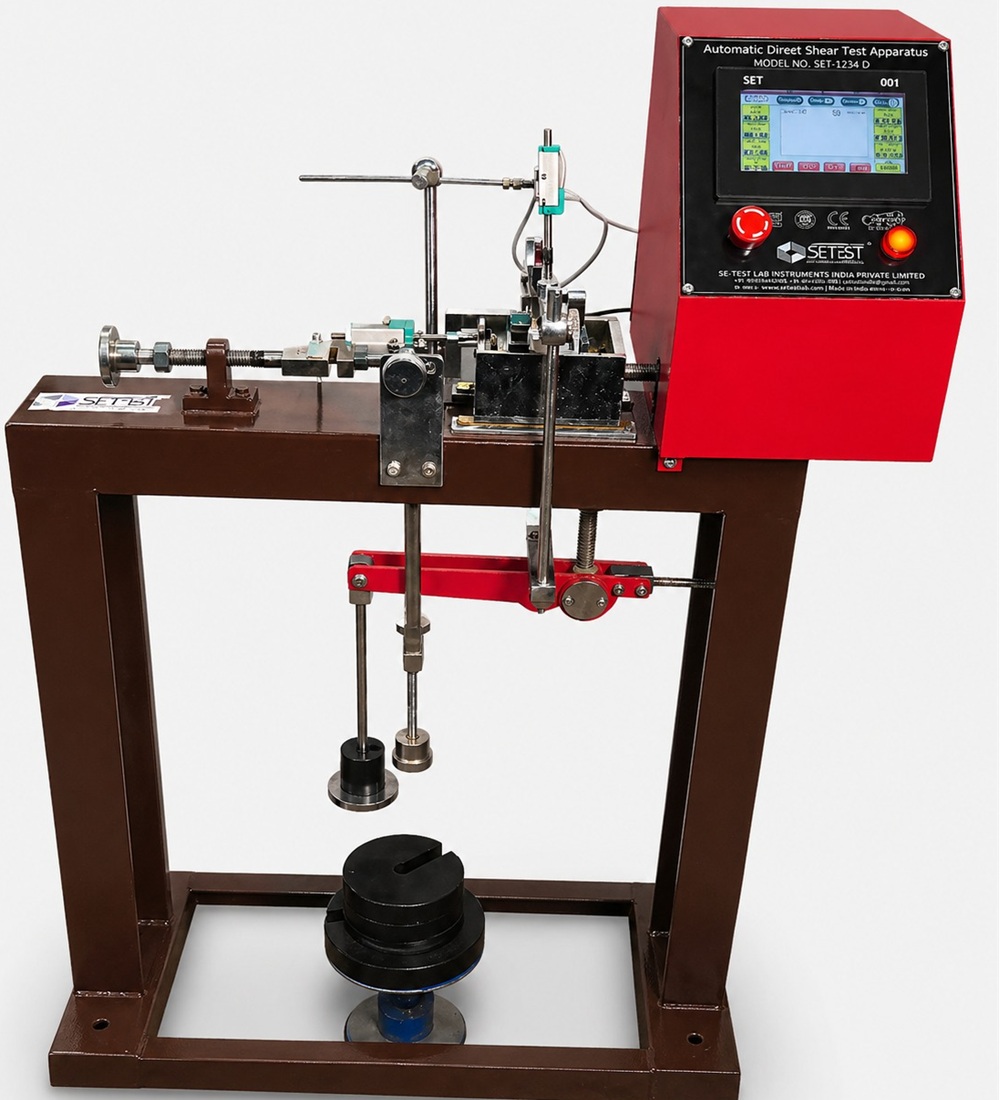

Automatic Direct Shear Test Apparatus

Model No.: SET-1234 (A)

Standards:
ASTM D3080 BS 1377:7 AASHTO T236, CENISO/TS 17892-10

At Civil Lab Equipment Manufacturer is a pre-eminent name and leading manufacturers and suppliers and exporters civil engineering lab instruments of automatic direct shear test apparatus in Delhi, India. At Civil Lab Equipment Manufacturer, we take specialization in manufacturing and supplying of superior range of automatic direct shear test apparatus. Automatic apparatus is used for the purpose of determining the shearing strength of the soil with the help o–f the digital direct shear. The equipment has been fabricated using best quality raw material in sync with advanced technology, which further enhances its effectiveness.

Automatic direct shear test apparatus displays both speed as well as the displacement along with 0.00001 mm resolution. It can offer the speed between 0.00001 to 9.99999 mm/minute. The max shear effort of 5000 N can be achieved along the entire speed range. The chances of direct vertical load, or along with the lever arm ratio is 10:1. The equipment can bear maximum vertical direct load for upto 500N and with lever arm for upto 5500N. Civil lab assemblies consist of a shear box with a rigid wall square or round hole complete with a vertical loading pad grooved back face, a grooved retaining plate, 2 pcs. porous plates, 2 pcs. plane grids and 2 pcs. perforated grids.

At Civil Lab Equipment Manufacturer, shear machine is driven by high resolution servomotor and gear box assembly load cell is used for load measurement 10 x 0.001 mm to 25 x 0.001 mm horizontal displacement measurements respectively sensitivity linear potentiometric transducers used.

It also features display and the pilot lamps for signalling any improper working and alarms. There is one box group placed on ball track along with the high-quality antifriction system. Besides, reading value results are quick and the same time highly accurate.

  • Digital stepper motor that is microprocessor controlled
  • Digital display with keyboard for proper controlling
  • RS232 port
  • Return datum facility
  • Forward/reverse travel limit switches
  • Fully stepless variable speed after crossing the range of 0.00001 to 9.99999mm/minute
