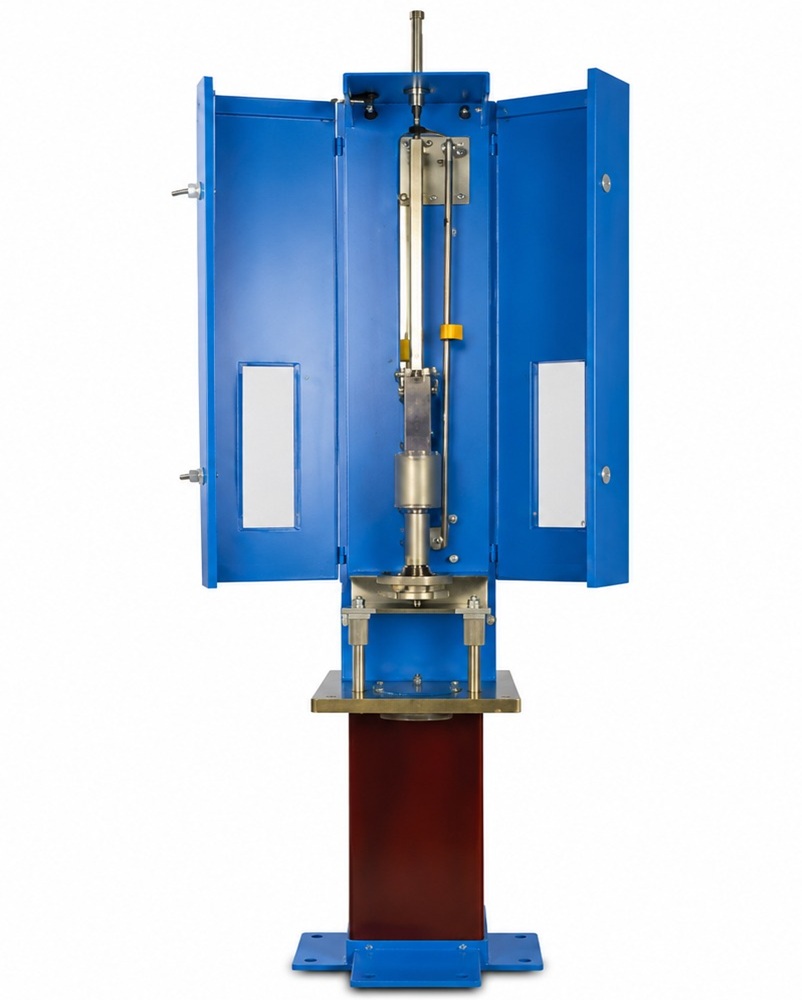

Automatic Compactor For Bituminous Mixes

Model No.: SET-1001

Standards:
IS 7535 1986 ASTM C 183 AASHTO T 127

    The Automatic Compactor For Bituminous Mixes made available by Civil Lab Equipment Manufacturers is follows the international quality standards. Our Automatic Compactor our tested for high quality and provide excellent functionality. Moreover, we also take expertise in supplying the equipment as per the specific requirements of our clients.

    The Automatic Compactor for Bituminous Mixes is used for the purpose of eliminating the difficult process compaction done manually. By using the Automatic Compactor, the compaction can be achieved in an even degree. The driven mechanism lifts a weight of 4.5kg and then the same is dropped via a height of 457 mm. There is one rammer foot which can be removed, and it facilitates preheating. Also, there is one compaction pedestal having a holder affixed to the base. An automatic blow counter is also given which allows the number of blows that should be present prior to each test and which stops the machine automatically when the process gets complete.

  • Rugged construction to withstand hard work
  • Fully automatic and easy to operate
  • Uniform compaction
  • Automatic Preset Blow Counter
  • Suited to operate on 230 V, 50 Hz, Single Phase, A.C. supply.
  • Robust design and construction for withstanding hard work
  • The machine is fully automatic which makes it easy to operate
  • Automatic Preset Blow Counter
  • Uniform compaction

Also available for modified compaction test (10.2 Kg.)

Also available for modified compaction test (10.2 Kg.)
